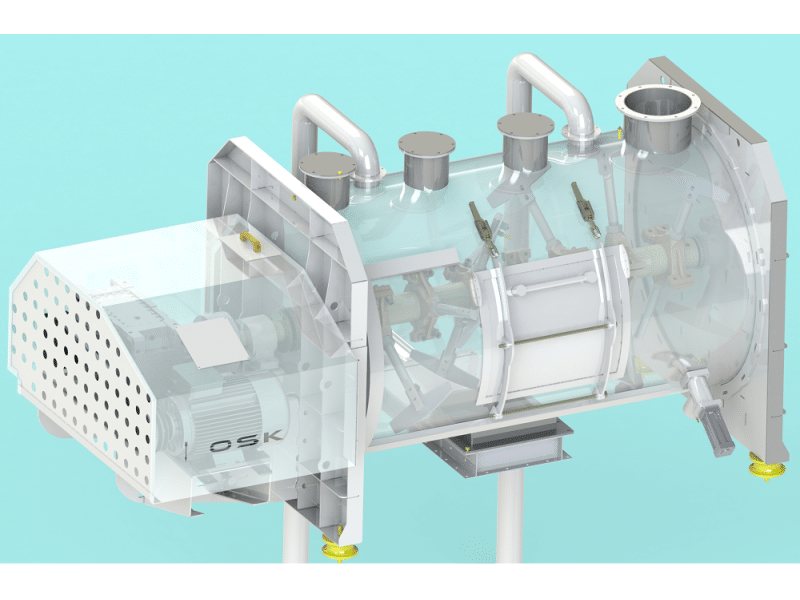

Dry Mortar Mixer
Advantages
- Wide range of products from 500 liters to 5,000 liters in all models
- High efficiency homogenous mixing in a short time
- Variable angle adjustable pallet angle as standard
- Easily changeable pallets
- Selectable pallet types according to the product
- Wear-resistant pallet
- Wearable pallet design for abrasion
- Run when mixer is full
- Various types of drive mechanism
- Ability to take samples for control purposes
- Emergency stop switch on the body de caps
- Long time interval maintenance
- Easy maintenance and repai
It provides a mixture of all kinds of powdered products and various chemical materials in a way that provides homogeneity in short time and high efficiency .
It is used to produce finished or semi-finished raw material according to the process flow.
Features
- The mixer pallets are suitable for angular changes into the mixer and are often mounted.
- A sufficient number of supply chutes can be made on the cylindrical body according to the process.
- Depending on the mixer capacity at the output of the product, there is a fully sealed flap with one to three pneumatic drives.
- There is an elastic type coupling between the drive group and the mixer shaft, where it is possible to use either hydraulic or different drive groups.
- In the mixer shaft sealing unit, instead of the standard seal, mechanical seal and air type seal can be applied depending on the process.
- Both sides long life bearing body
- Lockable maintenance covers
- Additional subframe application for bag collection conveyor
- Ventilation filter on body
- Closed bearing units

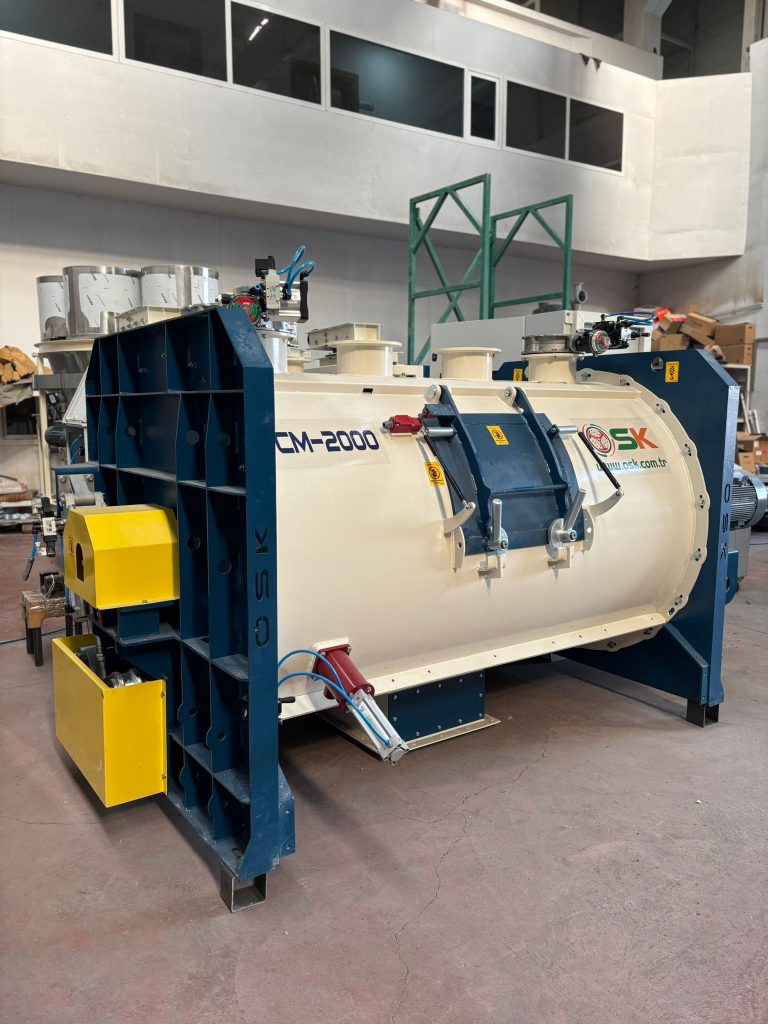

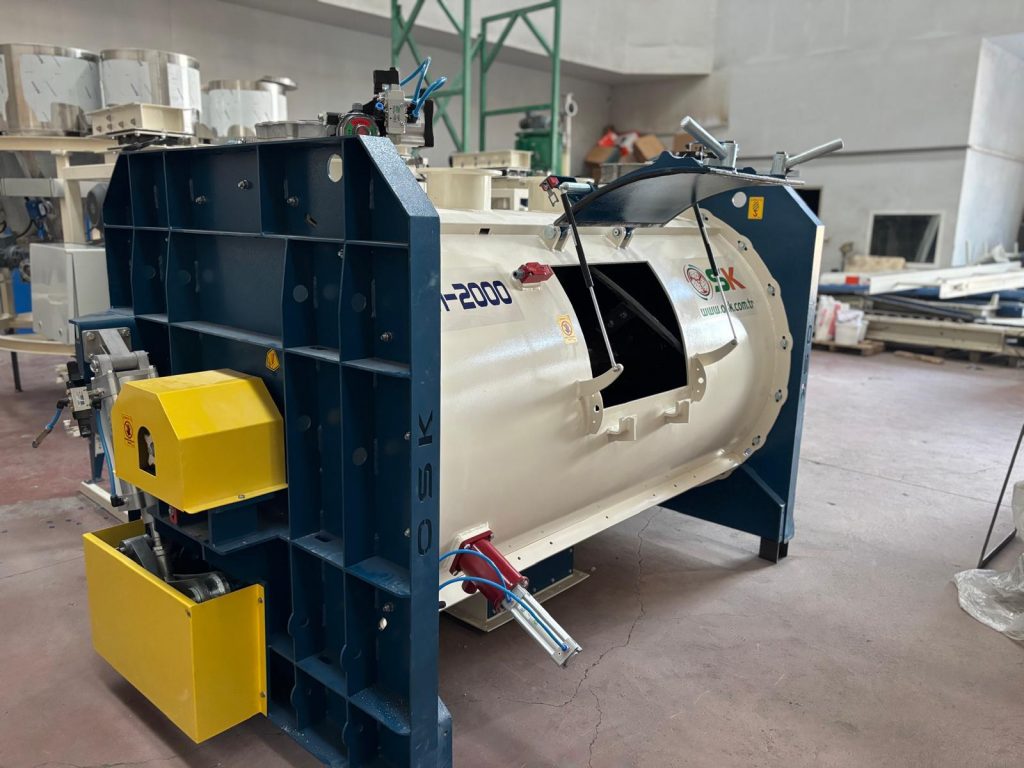

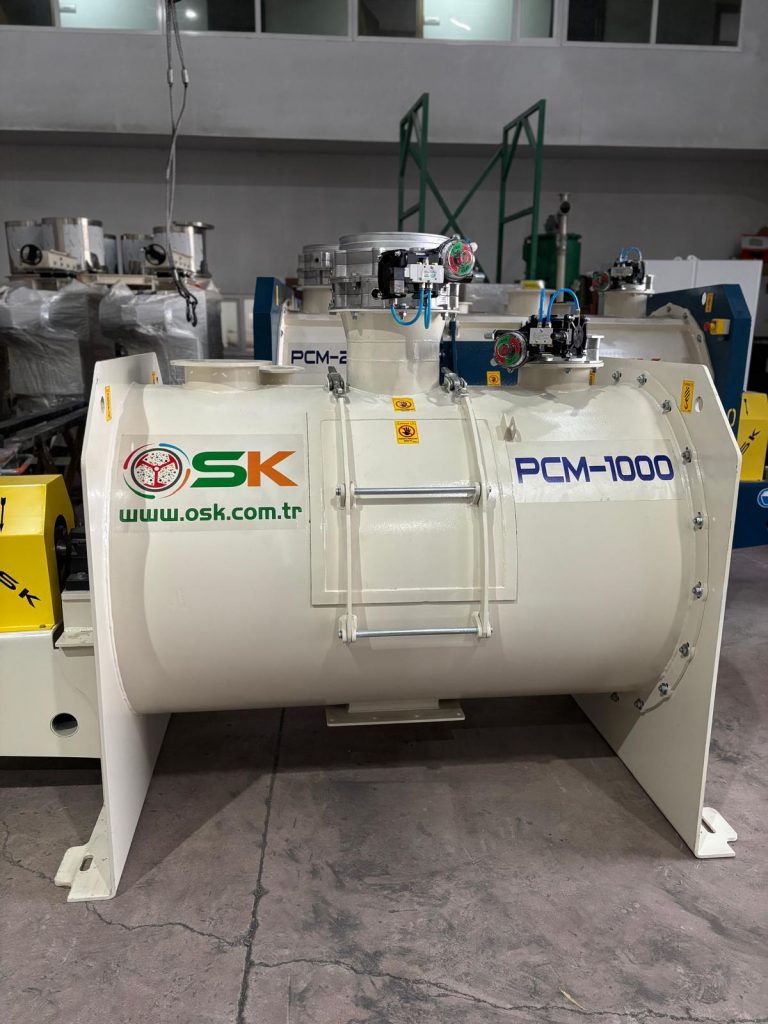

Type : PCM1000 – PCM5000
Capacity : 1m3 – 5m3
SPECIFICATIONS: • Homogenous mixing
• Mixing blades with easily adjustable angle and resistant to abrasion.
• Sampling
• Emergency stop buttons
• Sensors suitable for work and worker safety
• Function without leakage
• Gearbox for heavy loading conditions
• Automatic lubrication
